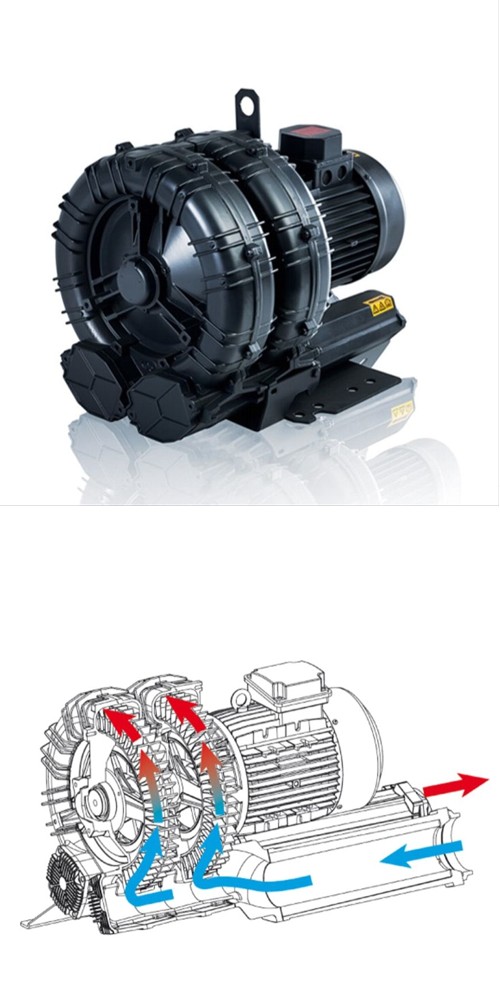

Side channel compressor for pressure and vacuum

RIC T 50 S - RIC T 120 S

Double blade impeller - single stage

Max. Capacity: 1985 m³/h (50 Hz)

2395 m³/h (60 Hz)

ambient temperature: -15 to +40°C

Directly flanged, two-pole single-phase, three-phase asynchronous motor in IE3 version. Insulation class F - tropicalized and IP55 protection with bi-metal thermal protection contact

Printing applications:

Maximum flow rate 2395 m³/h
Maximum pressure 650 mbar

Vacuum applications:

Maximum flow 2395 m³/h
Maximum pressure 325 mbar

Aluminium construction, on request with internal coating against corrosive media. Our products are also available with impregnation, sealing, anodising and special protection devices for aggressive gases.

Manuals are available in EN, FR, ES, IT, BP, other languages on request! Step-files, CAD-files will be gladly sent to you.
